Table of Contents.This is a simple demo project showing how to setup an driven serial port with buffering using the existing mbed support without talking directly with hardware. There is also a project that talks directly to UART hardware registers and it is probably more efficient time wise and easier to use, but it is a bit more difficult to understand all of the low level hardware code details.

Also there is a new project. Serial ports can transmit and receive data at the same time.

Serial handshaking lines to start and stop the data flow are typically not used or connected, so using interrupts along with buffering of character data is typically required to avoid loss of characters at high baud rates on serial ports. UARTs have an internal FIFO buffer to hold perhaps 16 characters or so, but it is just not large enough. The other important advantage is that using interrupts saves processor time, since code does not spin in I/O wait loops constantly checking slowly changing I/O status bits.Two are used to hold serial data with an in and out pointer.

One buffer is used for TX data buffering and one for RX data buffering. In is the location where new data is added to the buffer and out is the buffer location where data is removed. When in and out are incremented and reach the end of the buffer they wrap around using mod (i.e.,%) buffer size. The buffer empty condition is in=out and the buffer full condition is (in + 1)% buffer size = out.Using attach, you can specify the interrupt handler function for serial receive and serial transmit. In general, interrupt routines should not call any library functions unless you know that they are.

Typically, they are not reentrant. Most hardware I/O devices cannot be in use in the main program and also used by an interrupt routine without problems. Mutual exclusion may also be needed on such hardware devices by disabling interrupts in the main program whenever the I/O device is being actively used.Formatted IO using sprintf and sscanfGetc and putc will work with interrupt routines, but in many cases formatted I/O using printf or scanf would be more desirable.Printf in its current version cannot currently be used with any serial interrupt routines that use getc. Even a printf to a different serial port such as USB that does not have an interrupt handler will lock up, if one serial port has interrupt code using getc. This is likely some reentrancy issue with the two functions. For buffering, sprintf needs to be used in any case. Fortunately, it is possible to use sprintf to print to a buffer first and then copy the formatted data into the TX buffer using another function.

In this code, the function is called sendline. Sscanf is used in a similar manner with readline in this short demo program.Critical Sections using Enable and Disable InterruptsWhen accessing and modifying global or shared data with more than one process (i.e., main and interrupt routine) mutual exclusion is needed to avoid errors due to data inconsistency. This can happen when switching back and forth between processes while a new global or shared variable value is being changed in a register and has not yet been written back to memory. With an OS, would normally be used to solve this problem. On a single processor system with no OS, mutual exclusion for critical sections can be provided by disabling interrupts.

Stm32 Uart Interrupt Example

In the case here, we only want to disable interrupts briefly from the UART on the serial port being used. The volatile keyword in C on variable declarations helps this problem somewhat by making operations on that variable atomic (i.e., non-interruptible), but does not solve all of the possible problems here with the buffer array. In the mbed compiler, interrupts can be disabled with disableirq; and enabled with enableirq; (i.e., prefix is two underscores). In the mbed C compiler, the functions NVICEnableIRQ and NVICDisableIRQ are used to disable and enable individual interrupts. In the demo code, UART1 interrupt hardware is used (i.e., UART1IRQn).

UART1 connects to p9 and p10. This and the explain the UART and interrupt control hardware in more detail. Contains interrupt assignments and names. There is even a book just on.Running the Demo CodeThe test program below sets up two interrupt routines (Rx,Tx) with two circular buffers.

It is setup for a loopback test, and serial out must be tied back to serial in with a jumper wire from mbed p9 to p10. In an infinite loop, the main program increments a counter, prints out the counter in hex, decimal, and octal on three lines with sprint and sendline. It then reads back three lines using sscanf and readline.

If there are any errors reading back data, led4 turns on and stays on. In the main program, while sending data led3 is on and while reading data led3 is off. Led1 and led2, indicate code activity in the two interrupt routines.

So if all is well, led1, led2, and led3 are dimly lit and led4 is off. A demo using serial interrupts with buffering in a loopback testLast commit 09 Dec 2012 byThe mbed's four LEDs display activity from the serial interrupt demo code.

The dim state shows that the code is constantly sending and receiving data in the main program (LED3) and that it is also spending some time in both of the serial interrupt routines (LED1 and LED2). LED4 is off indicating no errors in reading back thousands of data values using interrupts and buffering.On many processors, the divide required for the mod (i.e.,%) operation takes more execution time than the other basic integer operations. If the buffer size is restricted to a power of two, the mod operation could be replaced by a simple bitwise AND (i.e., &) operation that masks off the lower bits and it would have a faster execution time. Tools and hardware to setup and debug serial connectionsA voltage level conversion circuit or is required to connect mbed to an RS-232 serial port.

The serial port on a PC uses RS-232 voltage levels +/-3 to +/-15V (i.e., not TTL 0-5V logic levels). This one from comes with the conversion circuit on a breakout board with the typical DB9 serial connector.

It also has LEDs that indicate serial data flow.mbedSparkfun RS232 SMD adapter3.3VVccGndGndP9 - TXRXP10- RXTXIf you hook up a serial port and data is not flowing, a serial cable or a null modem connector is often required so that TX is connected to RX, and RX is connected to TX at each end. Serial cables can be wired straight through or they may include the null modem signal swap and unfortunately they typically are not labeled. Here is a small DB9 mini null modem connector from. If a null modem is required, you can't just swap the TX and RX pins to the mbed chip since the voltage level conversion circuits only work in one direction. Small are also available when the cables are the wrong sex for the connector. Serial devices that work when the cable is plugged directly into the back of a PC will need both a null modem and a gender changer when used with mbed and the RS232 breakout boards. A single could be used to minimize all of the connector clutter, if you can find one.A few serial devices also require the optional hardware handshake signals for.

If you need to use handshaking, here is a serial breakout from Pololu that also includes the conversion circuits for the serial handshake lines. The wiring table does not include connections that might be needed to RS-232 handshake lines, but the default no connection may be OK for some devices. Mbed's APIs do not support all hardware handshake options. In some, cases pulling the handshake line high or low can get a device talking that is waiting on a handshake signal to send data. Realterm shows the state of the handshake lines and they can also be forced high or low on the PC side to experiment with a device that needs a handshake (lower right in image of Realterm that follows in next section). A few devices even pull power off of a handshake line to power the serial device (see for such an example).mbedPololu RS232 adapterVU=5vVCCGNDGNDRX(10)TXTX(9)RXA terminal emulation program that runs on a PC is a handy way to test serial ports and code. As seen below includes more features to debug serial port hardware than most.

Talk2Trend is one of best music website where you can easily download new and latest Punjabi song of 2019.Here you can also download new Punjabi album song, dj Punjabi songs, remix Punjabi songs, wedding Punjabi songs, mr jatt Punjabi songs, Punjabi songs ringtone and much more. Download song shera de derian te. Are you searching for sites, where you can download new Punjabi songs of 2019 then your searching stop here.

It is seen running the demo code. It has a status display of the connector signals in the lower right. Data can be displayed in ASCII, or hex for binary data transmissions. It also displays non-printable ASCII control codes, so you can see exactly what data is being sent, even if it is a character that does not print.

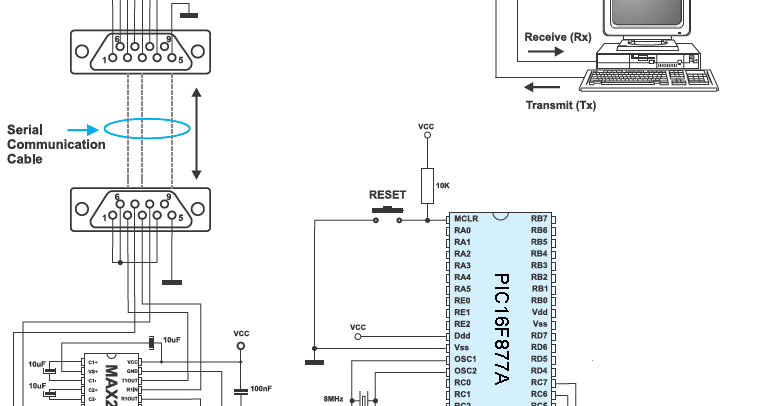

Mikroc Uart Interrupt Example Chart

If your PC does not have a serial port, small are available that can be used with a terminal emulation program. A is inside the cable and an OS device driver is typically required.
